EM232 Analog Output (232-0HB32、232-0HF32)

2 channels/4 channels of Voltage or Current, 12BIT precision,Optical coupling isolation.±10V Voltage or 0-20mA current output,stable and accurate.

Order No.:CTS7 232-0HB32/CTS7 232-0HF32

Specification:2 channels/4 channels of Voltage or Current, 12BIT precision,Optical coupling isolation.

Product Description

Order Data

Order Data

Order No.

CTSC-200 EM232 Analog Output Module, 2 channels of Voltage or Current, 12BIT precisionCTS7 232-0HB32
CTSC-200 EM232 Analog Output Module, 4 channels of Voltage or Current, 12BIT precisionCTS7 232-0HF32



Technical Spec

Performance Parameters

Specification

EM232, 2AQ×12BIT

EM232, 4AQ×12BIT

Physical Features

   Dimensions(W×H×D)

46×80×62mm

71.2×80×62mm

   Power Loss(dissipation)

2W

2W
Power Consumption
    From +5V(from I/O bus)

20 mA

    From L+60 mA
    L+  voltage range,class 2 or DC sensor supply20.4~28.8V DC
    LED indicator24 VDC Power Supply  Good
           ON = no fault,
           OFF = no 24 VDC power
Analog Output Features
    Number of analog output points24

    Isolation (field side to logic circuit)

Optical isolated: 500VAC, 1 minute
    Signal range

       Voltage output

       Current output

±10V

0~20mA

Resolution, full-scale

       Voltage output

       Current output

12BIT

11BIT

Data word format

       Voltage output

       Current output

-32000~+32000

0~32000

       Accuracy

typical: ±0.5% of full scale;    Worse: ±2% of full scale

Setting time

       Voltage output

       Current output

100μs
           2ms

Maximum drive@24VDC power

       Voltage output

       Current output

5000 ohm, minimum
500 ohm, maximum



Installation

Size Diagram

1.CTS7 232-0HB32

2.CTS7 232-0HF32

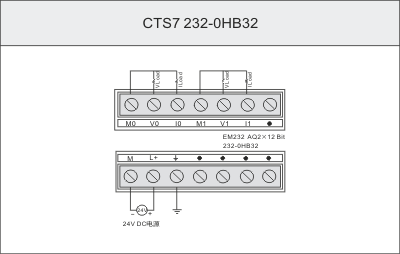

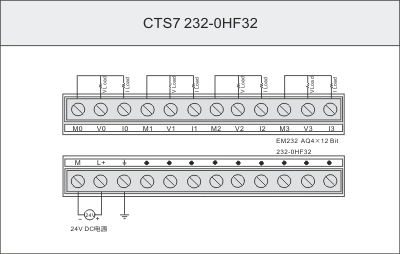

Wiring Diagram
