CTH300 Digital Input Modules(DIT-08,DIT-16,DIT-32)

24VDC Digital input 8DI/16DI/32DI*24VDC,powerful anti-interference ability.isolation.Signal acquisition accurate and stable

Order No.:CTH3 DIT-080S1/CTH3 DIT-160S1/CTH3 DIT-320S1

Specification:24VDC Digital input 8DI/16DI/32DI*24VDC

Product Description

Order Data

Products Name

Specification

Order No.

DIT-080S1 Digital Input

8*24VDC

CTH3 DIT-080S1

DIT-160S1 Digital Input

16*24VDC

CTH3 DIT-160S1

DIT-320S1 Digital Input

32*24VDC

CTH3 DIT-320S1



Technical Spec

Performance Parameters


stics

DIT-080S1

DIT-160S1

DIT-320S1

Dimension(W×H×D)

34×115×100 mm

Number of inputs

8

16

32

Current consumption

24V DC

+5Vbus



-

60mA



-

80mA

-

130mA

Input Type

Leak and source

Rated input voltage

24V DC,6mA

Input Voltage Range

20.4~28.8V DC

Logic 1 (min)

15V DC,2.5mA

Logic 0 (Max)

5V DC, 1mA

Input filter0.2ms,0.4ms,0.8ms,1.6ms,3.2ms,6.4ms,12.8ms,default 6.4ms
Allowable leakage current(maximum)

1mA

surge current

35VDC,last 0.5s

Isolation points for each group8/16/32

Contact resistance

6.6Ω

Input frequency (maximum)1KHz
Isolation500VAC,last 1min

Cable length

Shield

500m

Unshielded

150m


Installation

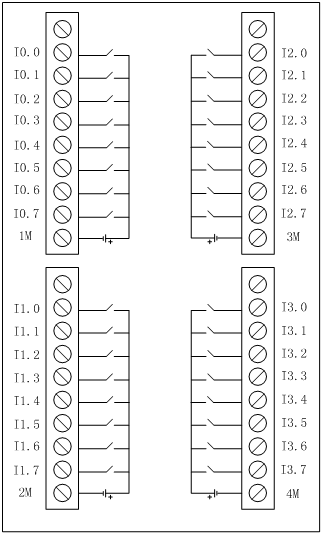

Wiring Diagram

  1.

  2. 1. DIT-080S1

  3. 2. DIT-160S1

  4. 3. DIT-320S1
