CPU H224X(214-1AX33-0X24/214-1BX33-0X24)

1 PPI,1 FPORT,1 Ethernet port,integration MODBUS_RTU、UDP_PPI、MODBUS_TCP protocol,14DI/10DO,24I/O.Program memory 16KB/Data memory 108KB,power supply 24VDC, 6*50KHZ hight speed counter,4 A/B phase,2*50KHZ hight speed output

Order No.:CTH2 214-1AX33-0X24/CTH2 214-1BX33-0X24

Specification:H224X:Program memory 16KB/Data memory 108KB,power supply 24VDC, 14DI/10DO Transistor output,0.5A,1 PPI,1 FPORT,1 Ethernet port,2*50KHz output(Pulse/Dir or PTO/PWM).H224X:Program memory 16KB/Data memory 108KB,power ​supply 220VAC,14DI/10DO Relay output,2A,1 PPT,1 FPORT,1 Ethernet port.

Product Description

Order Data

Product Name

Specification

Order No.

CPU H224X

Program memory 16KB/Data memory 108KB,power supply 24VDC, 14DI/10DO Transistor output,0.5A,1 PPI,1 FPORT,1 Ethernet port,2*50KHz output

CTH2 214-1AX33-0X24

CPU H224X

Program memory 16KB/Data memory 108KB,power supply 220VAC,14DI/10DO Relay output,2A,1 PPT,1 FPORT,1 Ethernet port.

CTH2 214-1BX33-0X24



Technical Spec

Performance Parameters

Function Type

Description

DimensionW×H×D

H224/H224X137×96×71.3mm

H226L/H226XL196.5×96×71.3mm


H224/H226L

H224X/H226XL

Bit instruction processing speed

0.22µs

0.15µs

Float instruction processing speed

12µs

8µs

Program memory

8+4KB

H224X: 12+4KB

H226XL: 24+48KB

Data memory

8KB

H224X: 8+100KB

H226XL:10+100KB

Power failure protection

The max.8KB

The max.10+100KB200 hours

Ways to power failure protection

FlashROM

Supercapacitor+Battery

Digital I/O

128DI/128DQ

640DI/640DQ

Analog I/O

32AI/32AQ

194AI/194AQ

Bit storage areaM

256bit

Local memoryL

64byte

Sequential control relayS

256byte

Pulse capture input

14

14

High speed counter

4*50KHz

HSC0~HSC3

Support 4 singal phase input1 AB phase inputHSC0 supportAB phase

only support high speed count mode 0 and 9

6*50KHz

HSC0~HSC5

4*30KHz

HSC3 and HSC5 both not support dual phase

High speed counter power input

18~26V

High speed pulse outputTransistor output

motion control output3*50KHz

Q point outputQ0.0~Q0.2

motion control output2*50KHz

PTO/PWM2*50KHz

Q point outputQ0.0~Q0.1

Timer interruption

21ms

Edge interruption

4 rising edge/4 falling edge

Max extension module

7

BD extension board

1

System indicator lamp

SF indicator lampred):ON=errorOFF=normal


RUN indicator lampgreen):ON=runOFF=stop


STOP indicator lamporange):ON=stopOFF=run


RMC indicator lampgreen):ON=allowOFF=forbid


LINK/ACT indicator lampgreen):ON=linkflash=transferOFF=stop

Analog potentiometer

--

28-bit resolution

Real-time clock

Build-inprecision ±120s/m.

Programming card

supportdownload program to PLC can choice coverage/no coverage program block/data block

Battery card

--

support

Memory card

--

support

Timer

Total amount256

1ms4
10ms16
100ms236

Total amount512

1ms4

10ms272

100ms236

Counter

256Power failure protection

Function Type

Description

Power input

85~264VAC47-63HZ),20.4~28.8VDCAnti reverse protection

Surge current

8A @ 264VAC6A @ 28.8VDC

Isolated

AC power supply1500VAC

DC power supplyno isolated

Power failure protection

120/240VAC10ms/20ms

24VDC10ms

Extension bus +5V

660mA

BD extension board +5V

200mA

Communication port +5V

10mA100R

Sensor power 24VDC

<=300mA,(<10MHZ<1V PP

Digital Input Features


H224/H224X

H226L/H226XL

Number of integrated digital input

14

24

Input type

Sink/ Source

Rated voltage

24VDC

Voltage input

20.4~28.8VDC

Surge voltage

35VDClast 0.5s

Logical 1 Signal (minimum)

15 VDC2.5mA

Logical  0 Signal (Maximum )

5 VDC1mA

Maximum permissible leakage current

1mA

Filtering input

H224 and H226Lsupport 3.4ms,6.4msH224X and H226XL support 0.2ms0.4ms0.8ms1.6ms3.2ms6.4ms12.8msdefault 6.4ms

Isolated(field side to logical circuit)

Isolated groups

500V AC1 minute
refer to the Terminal  Identification

Simultaneous inputs

14

24

Maximum cable length

Shielded

Unshielded



500mstandard input50mhigh-speed counters input

300mstandard input

Digital Output Features

Output type

Transistor

Relay


H224/H226L

H224X/H226XL

H224/H226L

H224X/H226XL

Type

MOSFETSource

dry contact

Rated voltage

24VDC

24VDC or 110V/220VAC

Voltage input

20.4~28.8VDC

530VDC5250VAC

Surge voltageMaximum

8A100ms

5A4s@10% duty ratio

Rated currentmaximum

0.5A

2.0A

Rated currentmaximum

6A

8A

lighting loadmaximum

5W

DC 30WAC 200W

On-Resistance

0.3Ωmax 0.6Ω

0.2Ω

Isolated(field side to logical circuit)



500VAC1 minute

1500VAC1 minute

Delay output

off to run

Transistor H224/H226Lmax .15μs

Relay H224/H226Lmax .50μs

TransistorH224X/H226XL2μs(Q0.0, Q0.1)max .15μs

Relay H224X/H226XLmax .10ms


Run to off

Transistor H224/H226Lmax .130μs

Relay H224/H226Lmax .200μs

TransistorH224X/H226XL10μs(Q0.0, Q0.1)max .130μs

Relay H224X/H226XLmax .10ms

Service time

--

10,000,000non-loaded

Service time

100,0002A

Simultaneous output

H224/H224X10

H226L/H226XL16

Parallel output

no

yes

Maximum cable length

Shielded

500m


Unshielded

150m


Installation

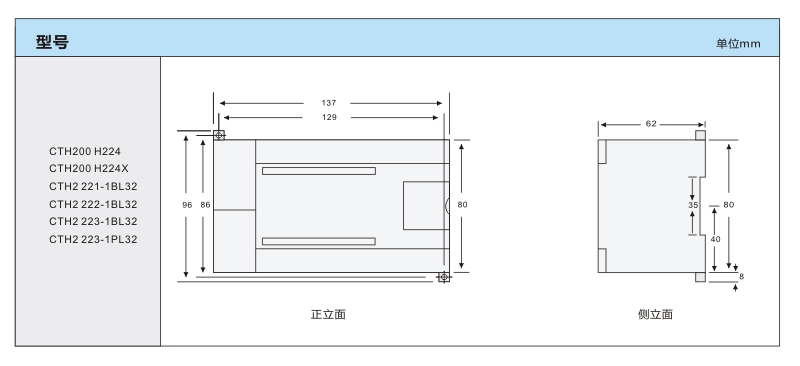

Size Diagram

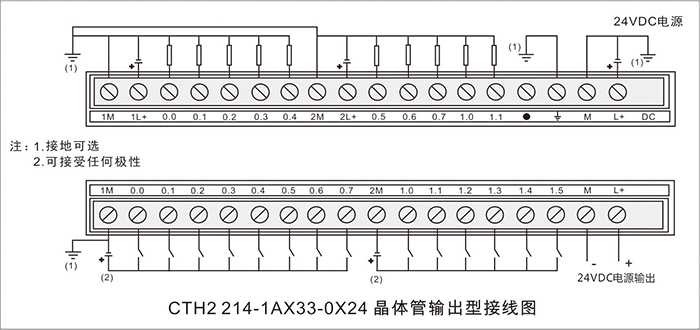

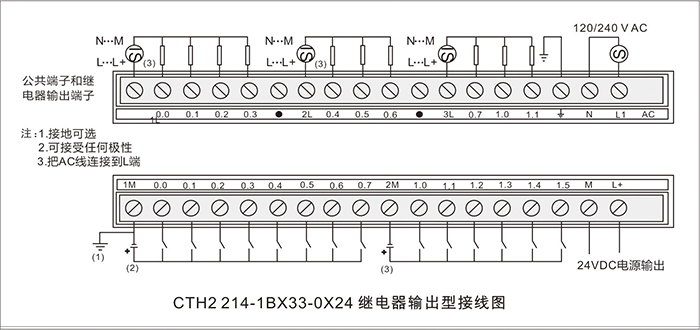

Wiring Diagram
